TL20
Trolley speaker / Bring music with you and enjoy going
Introduction

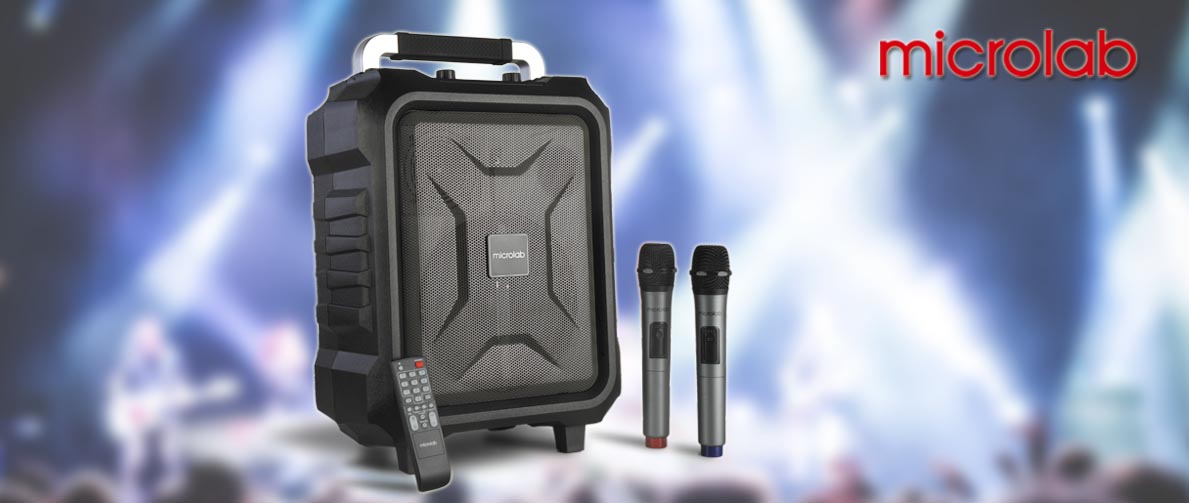

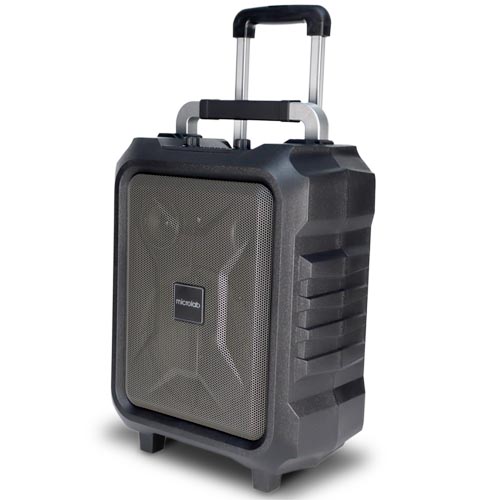

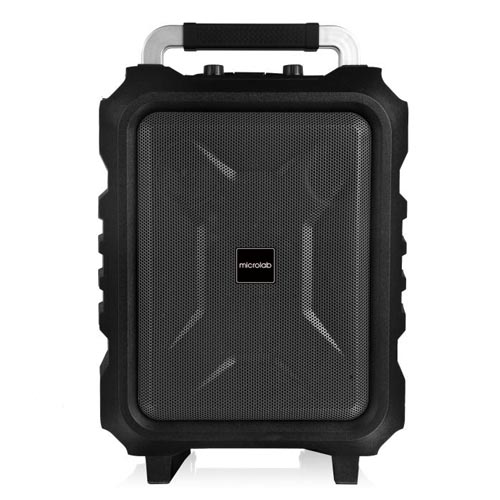

TL20 is a protable Bluetooth trolley speaker with wireless microphone.It adopts
the new ABS engineering plastic to make the speaker box body, anti-interference,
excellent heat resistance and weather resistance, drop resistance, no deformation,
long service life,meet your different outdoor scenes.
High quality powerful 8 "woofer and 3"tweeter provides stunning performance
with deep bass and crystal clear sound.Amazing acoustic performance provides
you with the perfect outdoor entertainment.A powerful combination of features
ensures a high fidelity sound experience.
Wireless remote control supports multi-mode switching,easy operation, which is
more suitable for long-distance .
Features
• Powerful trolley speaker,portable and smart design.
• Professional Karaoke system,support wireless microphone,guitar and bass guitar.
• Support U disk,TF,FM,Aux-in and Bluetooth function.
• Built-in rechargeable acid-lead 4.5A battery,normally,it can work for 4-6hours.
• With high quallity 8 inch powerful bass.
Specifications
Amplifier
Output power: 200W
Harmonic distortion: < 0.5% (1W 1kHz)
Input sensitivity: 650mV
Frequency response: 40 Hz - 20 kHz
Signal/Noise ratio: > 71 dB
Battery Parameter: 4.5Ah 12V
Battery Capacity: 4500 mAh
Charge Time: 6-8hours
Play Time: 4-6 hours
Speakers
Tweeter Driver: 3" x 1
Woofer Driver: 8" x 1
Interfaces
Input: Bluetooth, TF card, USB drive,Aux,FM
Output: Aux
DC output: 5V/1A
Microphone
Working Voltage: DC 5-9V
Working Current: ＜130 mA
Frequency Response: 40Hz - 15KHz
Sensitivity: 5 dBuV
Image Rejection:＞80dB
Speaker :400 x 200 x 500 mm
Product net weight: 17.7 kg
Package information
Package contents
TL20 Speakers 1pc
Audio cable 1pc
Microphone 2pcs
Microphone bracket 2pcs
Adapter 1pc
Remote control 1pc
User manual 1pc
Dimensions
Export box: L585*W430*H555 mm
